LED drivers.
Power supplies.
Surge protection.

Every LED driver, power supply and protection device we make — designed in-house at Sahibabad, Ghaziabad. Browse by category, check the spec, get in touch.

Radar Motion Sensor Strip Drivers Dusk to Dawn Flicker Free Outdoor Potted Isolated HPF Non-Iso HPF Isolated LPF Non-Iso LPF Dimmable CCT / Tri-Color DC-DC Outdoor Open-Frame Surge Protection

Radar Motion Sensor Drivers

5.8 GHz radar detection — through acrylic, glass and thin walls. Drop-in for 40W tubes and panels.

SP-1375 SP-1375
SP-1375 40W tubelight
40W Radar-Sensor Driver for Tubelights
Watts
40W
Input
150–280V AC
Output
54–80V DC · 500mA
Surge
2.5kV
Ingress
IP20
Dimensions
122 × 21 × 16 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-1475 SP-1475
SP-1475 40W compact
40W Radar-Sensor Driver for 2×2 Panel Lights
Watts
40W
Input
150–280V AC
Output
54–80V DC · 500mA
Surge
2.5kV
Ingress
IP20
Dimensions
69 × 38 × 21 mm
Dimming
Radar Sensor
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

Strip-Light Drivers — LPF with Cabinet (non-IP)

Indoor strip-light power supplies, low-power-factor.

SP-818 12V Cabinet SP-818 12V Cabinet SP-818 12V IP67 SP-818 12V IP67
SP-818 12V
12W Strip Driver — for Strip Lights
Input
130–290VAC
Output
12V DC · 1A
Ingress
IP20
Dimensions
74 × 27 × 24 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-712 12V SP-712 12V
SP-712 12V
18W Strip Driver — for Strip Lights
Input
130–290VAC
Output
12V DC · 1.5A
Ingress
IP20
Dimensions
81 × 42 × 22 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-715 24V Cabinet SP-715 24V Cabinet SP-715 24V IP67SP-715 24V IP67
SP-715 24V
30W Strip Driver — for Strip Lights
Input
130–290VAC
Output
24V DC · 1A
Ingress
IP67
Dimensions
111 × 31 × 24 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-715 12V Cabinet SP-715 12V Cabinet SP-715 12V IP67 SP-715 12V IP67
SP-715 12V
30W Strip Driver — for Strip Lights
Watts
30W
Input
130–290V AC
Output
12V DC · 2.5A
Surge
2.5kV
Ingress
IP20
Dimensions
111 × 31 × 24 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-724 24V Cabinet SP-724 24V Cabinet SP-724 24V IP67SP-724 24V IP67
SP-724 24V
40W Strip Driver — for Strip Lights
Input
130–290VAC
Output
24V DC · 1.5A
Ingress
IP20
Dimensions
166 × 31 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-724 12V Cabinet SP-724 12V Cabinet SP-724 12V IP67 SP-724 12V IP67
SP-724 12V
45W Strip Driver — for Strip Lights
Input
130–290VAC
Output
12V DC · 3.5A
Ingress
IP20
Dimensions
166 × 31 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-727 12V Cabinet SP-727 12V Cabinet SP-727 12V IP67 SP-727 12V IP67
SP-727 12V
60W Strip Driver — for Strip Lights
Input
130–290VAC
Output
12V DC · 5A
Ingress
IP20
Dimensions
151 × 42 × 31 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-727 24V Cabinet SP-727 24V Cabinet SP-727 24V IP67 SP-727 24V IP67
SP-727 24V
60W Strip Driver — for Strip Lights
Input
130–290VAC
Output
24V DC · 2.5A
Ingress
IP20
Dimensions
151 × 42 × 31 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-852 SP-852
SP-852 12V/24V
60W Half-Potted Strip Driver — for Strip Lights
Watts
60W
Input
130–290V AC
Output
12V DC · 5A / 24V DC · 2.5A (70%)
Ingress
IP20
Dimensions
122 × 40 × 29 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-738 24V SP-738 24V
SP-738 24V
90W Half-Potted Strip Driver — for Strip Lights
Input
130–290VAC
Output
24V DC · 3.5A
Ingress
IP20
Dimensions
207 × 42 × 35 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-738 12V SP-738 12V
SP-738 12V
90W Half-Potted Strip Driver — for Strip Lights
Input
130–290VAC
Output
12V DC · 7.5A
Ingress
IP20
Dimensions
207 × 42 × 35 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-752 SP-752
SP-752 12V
140W Half-Potted Strip Driver — for Strip Lights
Watts
140W
Input
130–290V AC
Output
12V DC · 10A
Ingress
IP20
Dimensions
150 × 41 × 29 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price

Strip-Light Drivers — LPF with Cabinet (IP-rated)

Outdoor / wet-area strip-light drivers, low-power-factor.

SP-818 12V Cabinet SP-818 12V Cabinet SP-818 12V IP67 SP-818 12V IP67
SP-818 12V
12W IP67 Strip Driver — for Outdoor Strips & Signage
Input
130–290VAC
Output
12V DC · 1A
Ingress
IP20
Dimensions
74 × 27 × 24 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

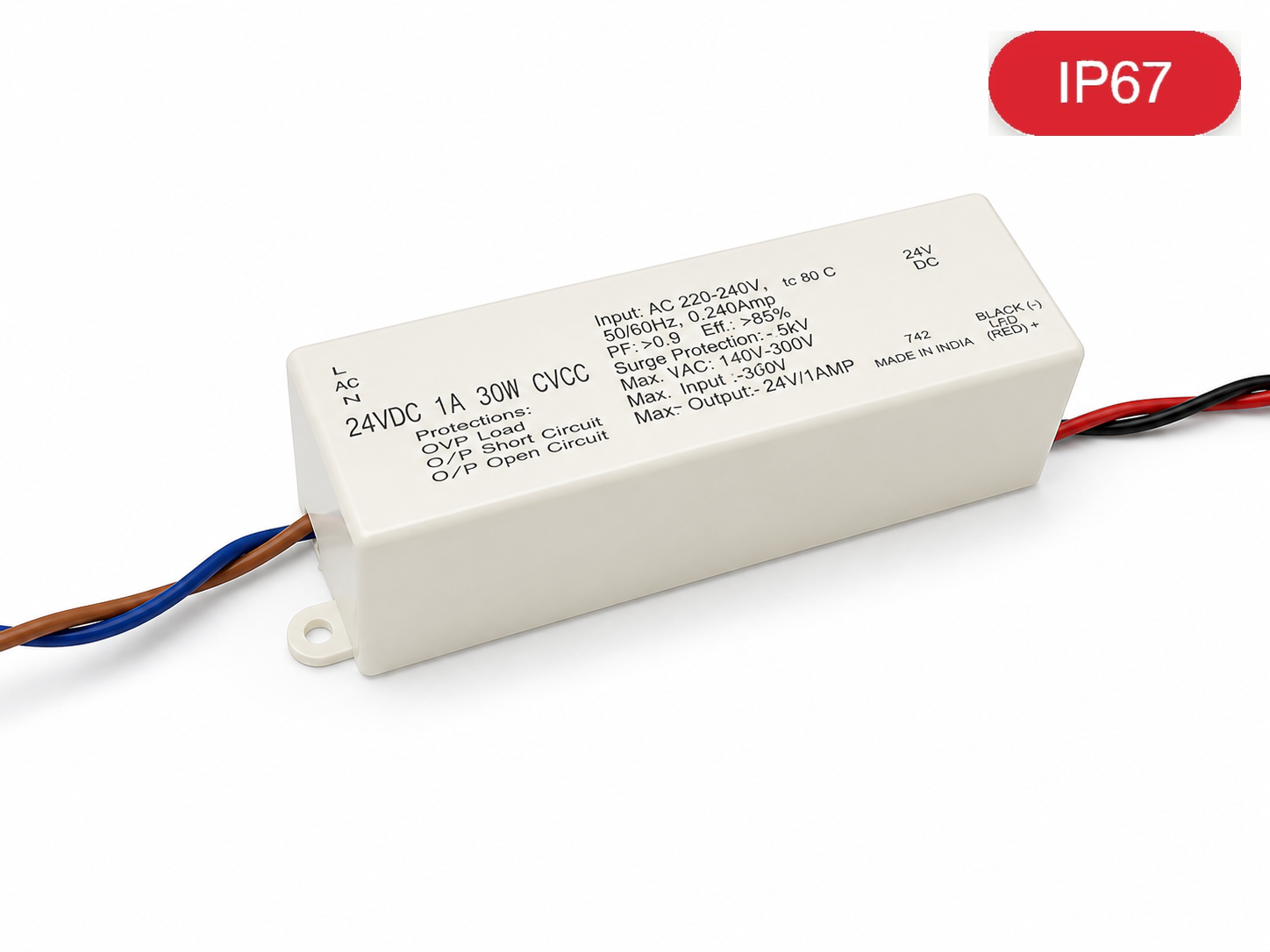

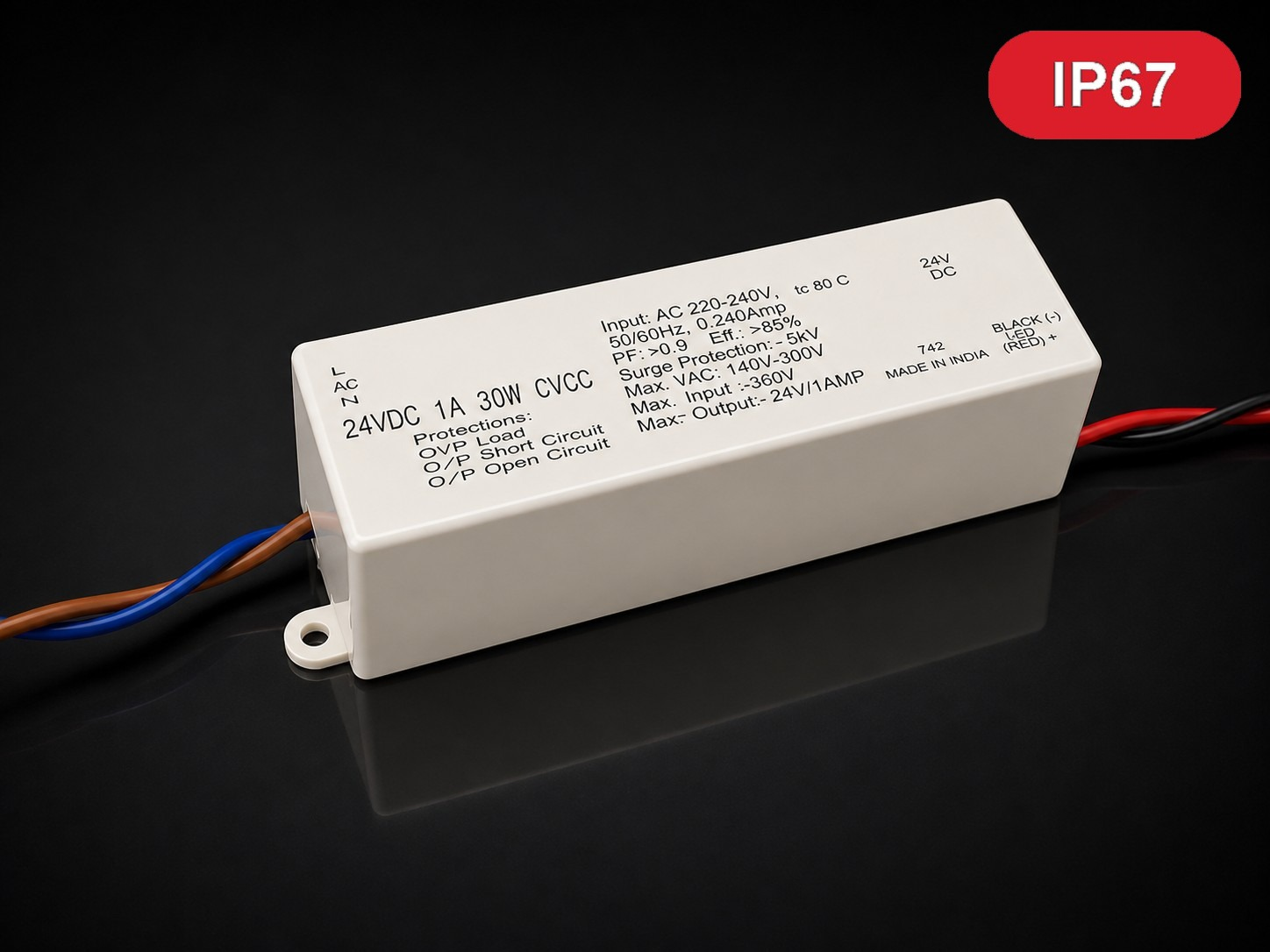

SP-715 24V Cabinet SP-715 24V Cabinet SP-715 24V IP67SP-715 24V IP67
SP-715 24V
30W IP67 Strip Driver — for Outdoor Strips & Signage
Input
130–290VAC
Output
24V DC · 1A
Ingress
IP67
Dimensions
111 × 31 × 24 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-715 12V Cabinet SP-715 12V Cabinet SP-715 12V IP67 SP-715 12V IP67
SP-715 12V
30W IP67 Strip Driver — for Outdoor Strips & Signage
Watts
30W
Input
130–290V AC
Output
12V DC · 2.5A
Surge
2.5kV
Ingress
IP67
Dimensions
111 × 31 × 24 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Encapsulated for outdoor use
Ask Price

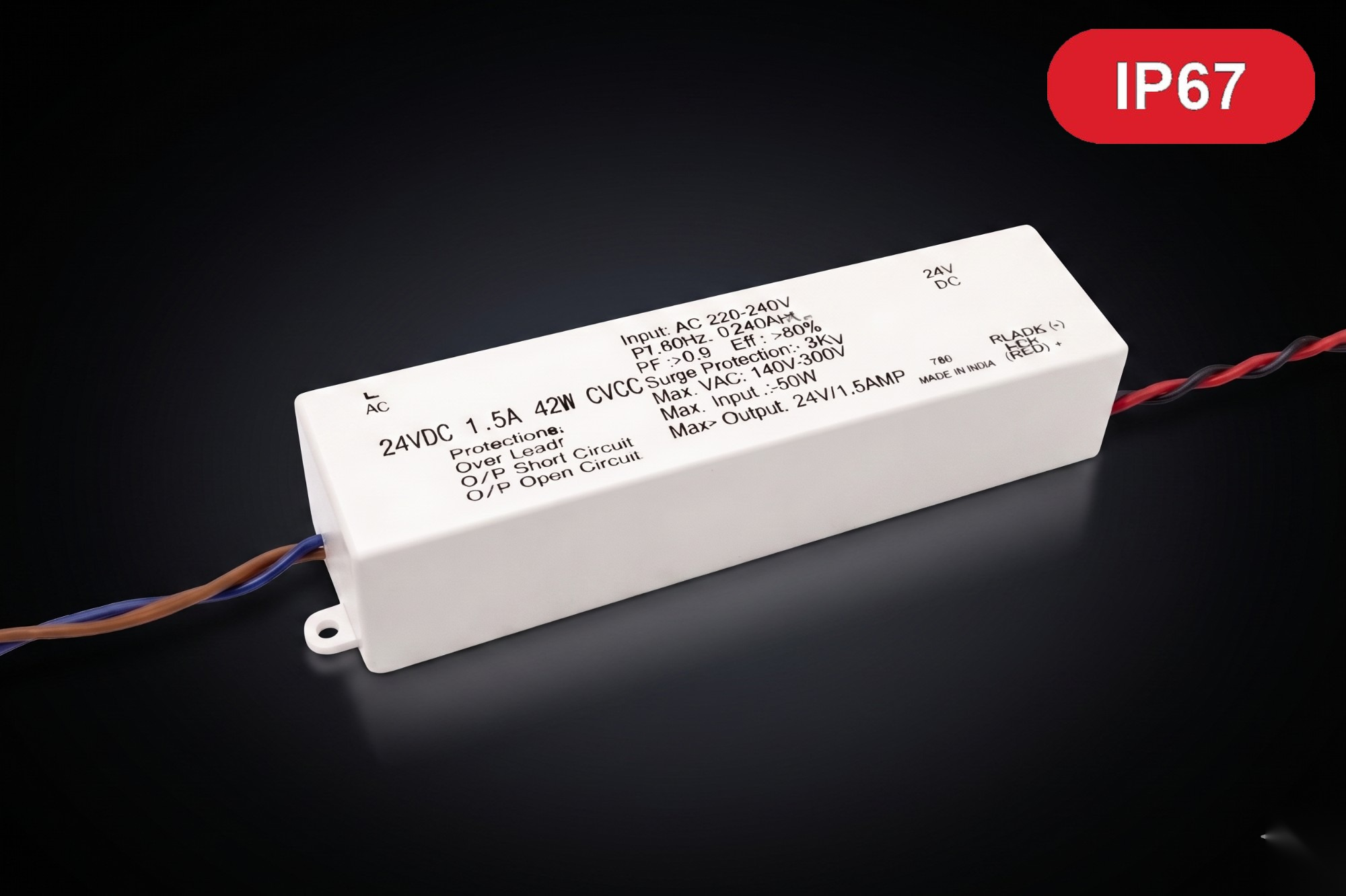

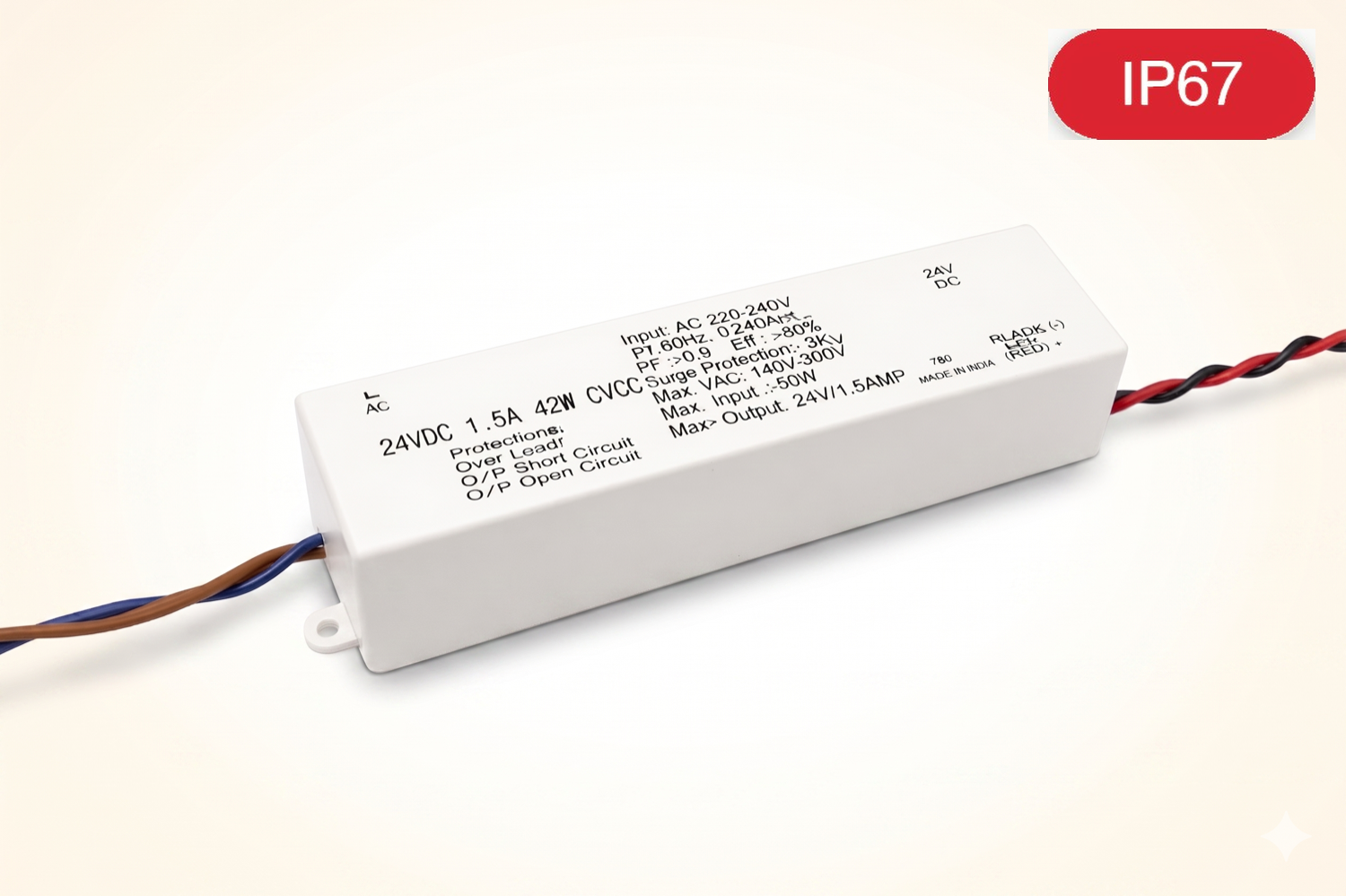

SP-724 24V Cabinet SP-724 24V Cabinet SP-724 24V IP67SP-724 24V IP67
SP-724 24V
40W IP67 Strip Driver — for Outdoor Strips & Signage
Input
130–290VAC
Output
24V DC · 1.5A
Ingress
IP20
Dimensions
166 × 31 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-724 12V Cabinet SP-724 12V Cabinet SP-724 12V IP67 SP-724 12V IP67
SP-724 12V
45W IP67 Strip Driver — for Outdoor Strips & Signage
Input
130–290VAC
Output
12V DC · 3.5A
Ingress
IP20
Dimensions
166 × 31 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-727 12V Cabinet SP-727 12V Cabinet SP-727 12V IP67 SP-727 12V IP67
SP-727 12V
60W IP67 Strip Driver — for Outdoor Strips & Signage
Input
130–290VAC
Output
12V DC · 5A
Ingress
IP20
Dimensions
151 × 42 × 31 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-727 24V Cabinet SP-727 24V Cabinet SP-727 24V IP67 SP-727 24V IP67
SP-727 24V
60W IP67 Strip Driver — for Outdoor Strips & Signage
Input
130–290VAC
Output
24V DC · 2.5A
Ingress
IP20
Dimensions
151 × 42 × 31 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

Dusk-to-Dawn Drivers

Light-sensor enabled drivers — auto on at dusk, off at dawn.

SP-112LR SP-112LR
SP-112LR 36W
36W Dusk-to-Dawn Driver
Watts
36W
Input
120–300V AC
Output
24–45V DC · 1A / 52–66V DC · 600mA
Ingress
IP65
Dimensions
110 × 38 × 26 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-108LR SP-108LR
SP-108LR 50W
50W Dusk-to-Dawn Driver
Watts
50W
Input
120–300V AC
Output
24–45V DC · 1.5A / 52–66V DC · 800mA
Ingress
IP65
Dimensions
110 × 38 × 26 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • THD <10% — flicker-free output
  • Sustains 350V AC for 4 hours
Ask Price
SP-110LR SP-110LR
SP-110LR 60W
60W Dusk-to-Dawn Driver
Watts
60W
Input
120–300V AC
Output
24–45V DC · 1.5A / 52–66V DC · 1A
Ingress
IP65
Dimensions
120 × 38 × 31 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • THD <10% — flicker-free output
  • Sustains 350V AC for 4 hours
Ask Price
SP-109LR SP-109LR
SP-109LR 100W
100W Dusk-to-Dawn Driver
Watts
100W
Input
120–300V AC
Output
30–45V DC · 2.7A / 50–75V DC · 1.5A
Ingress
IP65
Dimensions
128 × 52 × 38 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • THD <10% — flicker-free output
  • Sustains 350V AC for 4 hours
Ask Price

100%Flicker-Free Drivers — with Cabinet

Zero perceptible flicker — for camera environments, studios, hospitals.

SP-8171 Open Frame SP-8171 Open Frame SP-8171 Cabinet SP-8171 Cabinet SP-8171 IP67 SP-8171 IP67
SP-8171 12W Flicker-Free
12W Flicker-Free Driver
Input
120–300VAC
Output
24-42V DC · 300mA
Ingress
IP20
Dimensions
54 × 24 × 17 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-9171 Open Frame SP-9171 Open Frame SP-9171 Cabinet SP-9171 Cabinet SP-9171 IP67 SP-9171 IP67
SP-9171 20W Flicker-Free
20W Flicker-Free Driver
Input
120–300VAC
Output
24-42V DC · 300mA
Ingress
IP20
Dimensions
61 × 30 × 21 mm
Features
  • 2.5KV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • 2.5kV surge protection (IEC 61000-4-5)
Ask Price
SP-315 SP-315
SP-315 24W Potted
24W Flicker-Free Driver
Watts
24W
Input
130–290V AC
Output
72V DC · 300mA
Ingress
IP67
Dimensions
111 × 31 × 27 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 320VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-352 SP-352
SP-352 30W
30W Flicker-Free Driver
Watts
30W
Input
130–290V AC
Output
36V DC · 600mA / 72V DC · 300mA
Ingress
IP62
Dimensions
121 × 38 × 30 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-924 IP67 SP-924 IP67
SP-924 45W IP67
45W Flicker-Free Driver — IP67
Watts
45W
Input
130–290V AC
Output
36V DC · 1.25A / 60V DC · 750mA
Ingress
IP20
Dimensions
166 × 31 × 27 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 320VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-9377 SP-9377
SP-9377 50W
50W Flicker-Free Driver
Watts
50W
Input
120–300V AC
Output
24–45V DC · 1.5A / 52–66V DC · 800mA
Ingress
IP65
Dimensions
129 × 38 × 31 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 320VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-2026 SP-2026
SP-2026 200W
200W Flicker-Free Driver
Input
180-290V AC
Output
200-270V DC · 700mA
Ingress
IP65
Dimensions
210 × 65 × 40 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price

Outdoor Potted Drivers

Epoxy-encapsulated for IP65+ outdoor use.

SP-5677 SP-5677
SP-5677 15W
15W Potted Outdoor Driver
Input
120-300V AC
Output
24-72V DC · 180-300mA
Ingress
IP65
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-1077 SP-1077
SP-1077 15W/24W
24W Potted Outdoor Driver
Watts
24W
Input
120–300V AC
Output
24–45V DC · 600mA / 50–72V DC · 300mA
Ingress
IP65
Dimensions
75 × 39 × 29 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-7377 SP-7377
SP-7377 50W
50W Potted Driver — 6kV Surge, HV/LV Cut-off, For Street & Flood Lights
Watts
50W
Input
120–300V AC
Output
24–45V DC · 1.5A / 52–66V DC · 800mA
Ingress
IP65
Dimensions
110 × 38 × 26 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-2806 SP-2806
SP-2806 60W
60W Potted Driver — 6kV Surge, HV/LV Cut-off, For Street & Flood Lights
Watts
60W
Input
120–300V AC
Output
24–45V DC · 1.6A / 52–66V DC · 900mA
Ingress
IP65
Dimensions
120 × 38 × 31 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-5503 IP65 SP-5503 IP65
SP-5503 80W IP65
80W Potted Driver — 6kV Surge, HV/LV Cut-off, For Street & Flood Lights
Watts
80W
Input
120–300V AC
Output
24–45V DC · 1.75A / 52–66V DC · 1.2A
Surge
6kV
Ingress
IP65
Dimensions
131 × 43 × 37 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • HV cut-off @330V AC, reconnect @310V
  • LV cut-off @110V AC, reconnect @130V
  • Sustains 440VAC up to 4 Hrs
  • PF >0.95, efficiency >85%
Ask Price
SP-2961 IP67 SP-2961 IP67
SP-2961 100W IP67
100W Potted Driver — 6kV Surge, HV/LV Cut-off, For Street & Flood Lights
Input
120-300V AC
Output
24-66V DC · 700mA
Ingress
IP20
Dimensions
129 × 77 × 41 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-4962 SP-4962
SP-4962 100W
100W Potted Driver — 6kV Surge, HV/LV Cut-off, For Street & Flood Lights
Watts
100W
Input
120–300V AC
Output
30–45V DC · 2.8A / 52–70V DC · 1.5A
Ingress
IP65
Dimensions
128 × 52 × 38 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-4062 SP-4062
SP-4062 135W
135W Potted Driver — 6kV Surge, HV/LV Cut-off, For Street & Flood Lights
Watts
135W
Input
150–300V AC
Output
130–180V DC · 700mA
Ingress
IP65
Dimensions
111 × 52 × 38 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-2026 SP-2026
SP-2026 200W
200W Potted Driver — 6kV Surge, HV/LV Cut-off, For Street & Flood Lights
Watts
200W
Input
180–290V AC
Output
200–270V DC · 700mA
Ingress
IP65
Dimensions
210 × 65 × 40 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price

Isolated HPF Drivers

High power-factor isolated drivers — the workhorse of indoor lighting. Open-frame PCBs across 9–25W.

SP-6014 SP-6014
SP-6014 Round PCB
9W Round-PCB Driver for Cylinder-Shape Lights
Watts
9W
Input
120–300V AC
Output
18–30V DC · 300mA
Ingress
IP20
Dimensions
Ø38 × 17 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-8414 Open Frame SP-8414 Open Frame SP-8414 Cabinet SP-8414 Cabinet SP-8414 IP67 SP-8414 IP67
SP-8414
9W Driver with 4kV Surge — for Panel Lights & COBs
Watts
9W
Input
120–300V AC
Output
18–30V DC · 300mA
Ingress
IP20
Dimensions
43 × 25 × 18 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-8301 Open Frame SP-8301 Open Frame SP-8301 Cabinet SP-8301 Cabinet SP-8301 IP67 SP-8301 IP67
SP-8301
12W Driver with 4kV Surge — for Panel Lights & COBs
Watts
12W
Input
120–300V AC
Output
24–42V DC · 300mA
Ingress
IP20
Dimensions
58 × 28 × 18 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-6101 SP-6101
SP-6101 Round PCB
15W Round-PCB Driver for Cylinder-Shape Lights
Watts
15W
Input
120–300V AC
Output
30–45V DC · 300mA
Ingress
IP20
Dimensions
Ø45 × 17 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-6001 Open Frame SP-6001 Open Frame SP-6001 Cabinet SP-6001 Cabinet SP-6001 IP67 SP-6001 IP67
SP-6001
24W Driver for Panel Lights & COBs
Watts
24W
Input
120–300V AC
Output
24–50V DC · 500mA / 54–80V DC · 300mA
Ingress
IP20
Dimensions
66 × 26 × 21 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-8320 Open Frame SP-8320 Open Frame SP-8320 Cabinet SP-8320 Cabinet SP-8320 IP67 SP-8320 IP67
SP-8320
24W Driver with 4kV Surge — for Panel Lights & COBs
Watts
24W
Input
120–300V AC
Output
21–40V DC · 600mA / 52–75V DC · 300mA
Ingress
IP20
Dimensions
61 × 30 × 21 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

Isolated HPF Drivers — with Cabinet (non-IP)

Encased in plastic enclosure for indoor use. Wider wattage range.

SP-7501 SP-7501
SP-7501 Cabinet
12W Cabinet Driver with 4kV Surge
Watts
12W
Input
120–320V AC
Output
24–45V DC · 300mA
Ingress
IP20
Dimensions
81 × 42 × 22 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-7601 SP-7601
SP-7601 Cabinet
18W Cabinet Driver with 4kV Surge
Input
120–300VAC
Output
24-45V DC · 300mA
Ingress
IP20
Dimensions
81 × 42 × 22 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-615 SP-615
SP-615 Cabinet
30W Cabinet Driver with 4kV Surge — for Slim Lights
Watts
24W
Input
120–300V AC
Output
21–40V DC · 600mA / 52–75V DC · 300mA
Ingress
IP20
Dimensions
111 × 30 × 25 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-624 Cabinet SP-624 Cabinet SP-624 IP67 SP-624 IP67
SP-624
45W Cabinet Driver — 4kV Surge, HV/LV Cut-off, For Slim Lights
Watts
40W
Input
120–300V AC
Output
24–45V DC · 1500mA / 52–66V DC · 750mA
Ingress
IP20
Dimensions
166 × 31 × 26 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-8502 Cabinet SP-8502 Cabinet SP-8502 IP67 SP-8502 IP67
SP-8502
40W Cabinet Driver — 4kV Surge, HV/LV Cut-off, For 2×2 Panel Lights
Watts
40W
Input
120–300V AC
Output
24–45V DC · 1A / 52–66V DC · 600mA
Ingress
IP65
Dimensions
110 × 38 × 26 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

Isolated HPF Drivers — with Cabinet (IP-rated)

Sealed for outdoor / wet environments. Same isolation, weather-resistant.

Non-Isolated HPF Drivers — Open Frame

Cost-optimised non-isolated bare PCBs. High power factor, slim form.

SP-928 SP-928
SP-928 Open Frame
9W Open-Frame Driver with 4kV Surge — Slim Body
Input
120-300V AC
Output
45-72V DC · 240mA
Surge
4kV
Ingress
IP20
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-925 SP-925
SP-925 Open Frame
9W Compact Open-Frame Driver with 4kV Surge — for Panel Lights
Input
120–300VAC
Output
45-72V DC · 240mA
Ingress
IP20
Dimensions
30 × 20 × 16 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-929 SP-929
SP-929 Open Frame
12W Open-Frame Driver with 4kV Surge — for Panel Lights
Input
120–300VAC
Output
45-72V DC · 240mA
Ingress
IP20
Dimensions
30 × 20 × 16 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-1854 SP-1854
SP-1854 Open Frame
18W Indoor Driver with 4kV Surge — for Panel Lights
Watts
18W
Input
120–300V AC
Output
45–72V DC · 220mA
Ingress
IP20
Dimensions
29 × 26 × 14 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-575 SP-575
SP-575 Open Frame
18W Slim Tubelight Driver with 4kV Surge
Watts
18W
Input
120–300V AC
Output
45–80V DC · 240mA
Ingress
IP20
Dimensions
83 × 17 × 12 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-1855 SP-1855
SP-1855 Open Frame
18W Open-Frame Driver with 4kV Surge — for Panel Lights
Watts
18W
Input
120–300V AC
Output
45–72V DC · 240mA
Surge
4kV
Ingress
IP20
Dimensions
39 × 23 × 14 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-755B SP-755B
SP-755B Open Frame
22W Driver with 4kV Surge — for Panel Lights
Input
120-300V AC
Output
50-72V DC · 300mA
Ingress
IP20
Dimensions
40 × 24 × 16 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-755 SP-755
SP-755 Open Frame
22W Panel Driver with 2.5kV Surge
Watts
22W
Input
120–300V AC
Output
50–72V DC · 300mA
Ingress
IP20
Dimensions
40 × 23 × 16 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-2902 Open Frame SP-2902 Open Frame SP-2902 Cabinet SP-2902 Cabinet SP-2902 IP67 SP-2902 IP67
SP-2902
48W Driver with 2.5kV Surge — for Panel Lights
Watts
24W
Input
120–300V AC
Output
50–72V DC · 300mA
Ingress
IP20
Dimensions
97 × 17 × 13 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-2075 SP-2075
SP-2075 24W
24W Slim Tubelight Driver with 4kV Surge
Watts
24W
Input
120–300V AC
Output
50–72V DC · 300mA
Surge
4kV
Ingress
IP20
Dimensions
97 × 17 × 13 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
  • PF >0.95, efficiency >85%
Ask Price
SP-1075 SP-1075
SP-1075 Open Frame
36W Slim Tubelight Driver with 4kV Surge
Watts
36W
Input
120–300V AC
Output
45–80V DC · 500mA
Ingress
IP20
Dimensions
118 × 19 × 16 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

LPFIsolated LPF Drivers — All form factors

Available in open-frame, cabinet (non-IP), and cabinet (IP-rated) for every SKU.

SP-4171 Open Frame SP-4171 Open Frame SP-4171 Cabinet SP-4171 Cabinet
SP-4171
6W Compact Open-Frame Driver
Input
120–300VAC
Output
24-42V DC · 300mA
Ingress
IP20
Dimensions
26 × 18 × 16 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 320VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-7171 Open Frame SP-7171 Open Frame SP-7171 IP67 SP-7171 IP67
SP-7171
9W LPF Driver — for 2-Way & 4-Way Lights, IP67 Protection
Watts
9W
Input
120–320V AC
Output
Constant Current 1200mA
Ingress
IP67
Dimensions
32 × 23 × 15 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 320VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-3032 Open Frame SP-3032 Open Frame SP-3032 Cabinet SP-3032 Cabinet SP-3032 IP67 SP-3032 IP67
SP-3032
9W LPF Driver — Wide Voltage Range
Input
120–300VAC
Output
3-36V DC · 700mA
Ingress
IP20
Dimensions
38 × 25 × 18 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 320VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-8171 Open Frame SP-8171 Open Frame SP-8171 Cabinet SP-8171 Cabinet SP-8171 IP67 SP-8171 IP67
SP-8171
12W LPF Driver — for 2-Way & 4-Way Lights, IP67 Protection
Watts
12W
Input
120–300V AC
Output
24–42V DC · 300mA
Ingress
IP20
Dimensions
54 × 24 × 17 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 400VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

Non-Isolated LPF Drivers — Open Frame

Single SKU, bare PCB form factor.

SP-4050 SP-4050
SP-4050 Open Frame
50W LPF Driver for Street Lights
Input
180–300VAC
Output
120-150V DC · 300mA
Ingress
IP65
Features
  • 3kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

Dimmable Drivers

TRIAC-dimmable & 1-10V dimmable drivers, multiple wattages.

SP-8223 SP-8223
SP-8223 15W TRIAC
15W TRIAC-Dimmable Driver — for COBs & Panel Lights
Watts
15W
Input
120–300V AC
Output
36–50V DC · 300mA
Ingress
IP20
Dimensions
88 × 38 × 23 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-1688 SP-1688
SP-1688 Dimmable
15W 1-10V Dimmable Driver — for COBs & Panel Lights
Watts
15W
Input
120–320V AC
Output
36–45V DC · 150–300mA
Ingress
IP60
Dimensions
90 × 44 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-1123 24W SP-1123 24W
SP-1123 24W 24W TRIAC
24W TRIAC-Dimmable Driver — for COBs & Panel Lights
Input
130–290VAC
Output
36-50V DC · 500mA
Ingress
IP20
Dimensions
90 × 44 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-1123 36W SP-1123 36W
SP-1123 36W 36W TRIAC
36W TRIAC-Dimmable Driver — for COBs & Panel Lights
Input
130–290VAC
Output
—
Ingress
IP20
Dimensions
90 × 44 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-1825 SP-1825
SP-1825 40W 1-10V
40W 1-10V Dimmable Driver — for 2×2 Panel Lights
Watts
40W
Input
120–320V AC
Output
36–110V DC · 300–1000mA
Ingress
IP60
Dimensions
151 × 42 × 31 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-4926 90W SP-4926 90W
SP-4926 90W 90W 1-10V
60–90W 1-10V Dimmable Driver — for Panel & Street Lights
Input
150–290VAC
Output
36-90V DC · 600-2200mA
Ingress
IP60
Dimensions
207 × 42 × 35 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price

Tri-Color CCT Drivers

Single driver outputs three color temperatures (warm/neutral/cool).

SP-702 SP-702
SP-702 8W
8W Tri-CCT Driver
Watts
8W
Input
120–320V AC
Output
120mA up to 8W
Ingress
IP20
Dimensions
30 × 24 × 16 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-425 SP-425
SP-425 9W
9W Tri-CCT Driver
Watts
9W
Input
120–320V AC
Output
120mA up to 9W
Ingress
IP20
Dimensions
29 × 26 × 15 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-7701 SP-7701
SP-7701 12W
12W Compact Tri-CCT Driver
Input
120–300VAC
Output
30-54V DC · 240mA
Ingress
IP20
Dimensions
81 × 42 × 22 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-402 SP-402
SP-402 18W
18W Tri-CCT Driver
Watts
18W
Input
120–320V AC
Output
36–72V DC · 240mA
Ingress
IP20
Dimensions
31 × 26 × 14 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-501 SP-501
SP-501 24W
24W Tri-CCT Driver
Watts
24W
Input
120–320V AC
Output
36–72V DC · 300mA
Ingress
IP20
Dimensions
48 × 22 × 18 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-7152 SP-7152
SP-7152 12V 2.5A
30W Tri-CCT Strip Driver — 12V · 2.5A
Watts
30W
Input
130–290V AC
Output
12V DC · 2.5A
Ingress
IP20
Dimensions
111 × 31 × 25 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-8552 SP-8552
SP-8552 40W
40W Tri-CCT Driver with 6kV Surge
Watts
40W
Input
130–290V AC
Output
30–54V DC · 700–1000mA
Ingress
IP65
Dimensions
110 × 38 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-4052 SP-4052
SP-4052 50W
50W Tri-CCT Driver
Input
120-300V AC
Output
36-72V DC · 300mA
Ingress
IP20
Dimensions
103 × 38 × 31 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price

INOUT12V24V5VDC-DC Drivers

Boost / buck converters for solar, battery and DC bus systems.

SP-DCDC SP-DCDC
SP-DCDC 8W
8W Compact Buck Converter
Watts
10W
Input
12–48V DC
Output
(Vin − 2V) DC · 900mA
Ingress
IP20
Dimensions
26 × 20 × 15 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-1931 SP-1931
SP-1931 10W
10W DC-DC Buck Converter
Watts
10W
Input
12–48V DC
Output
(Vin − 2V) · 900mA
Efficiency
>75%
Ingress
IP20
Dimensions
29 × 14 × 16 mm
Features
  • PWM dimming (optional)
  • Reverse-polarity protection
  • Built-in short-circuit protection
  • Working temperature −10°C to 40°C
Ask Price
SP-5636 Cabinet SP-5636 Cabinet SP-5636 IP65 SP-5636 IP65
SP-5636 30W
30W AC-DC / DC-DC Boost Converter — Encapsulated
Watts
30W
Input
10–30V AC/DC (12V/24V nominal)
Output
36–54V DC · 900mA
Efficiency
>75%
Ingress
IP65
Dimensions
73 × 37 × 28 mm
Features
  • Accepts AC or DC input — 12V or 24V nominal
  • Encapsulated for outdoor service
  • Reverse-polarity protection
  • Working temperature −10°C to 40°C
Ask Price
SP-1728 SP-1728
SP-1728 30W
30W AC-DC / DC-DC Boost Converter — Cabinet
Watts
30W
Input
10–30V AC/DC (12V/24V nominal)
Output
36–48V DC · 900mA
Efficiency
>75%
Ingress
IP20
Dimensions
111 × 31 × 25 mm
Features
  • Accepts AC or DC input — 12V or 24V nominal
  • Boost topology — steps up to 36–48V LED string
  • Reverse-polarity protection
  • Working temperature −10°C to 40°C
Ask Price

Outdoor Open-Frame Drivers

Bare PCB outdoor drivers — 30W to 75W high-current.

SP-4120 SP-4120
SP-4120 30W
30W Compact Open-Frame Driver for Industrial Use
Watts
30W
Input
120–300V AC
Output
24–45V DC · 700mA / 52–66V DC · 600mA
Ingress
IP20
Dimensions
90 × 40 × 25 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-4964 SP-4964
SP-4964 50W
50W Open-Frame Driver for Industrial Use
Input
120–300VAC
Output
24-66V DC · 900-1500mA
Ingress
IP20
Dimensions
86 × 53 × 30 mm
Features
  • 4kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • Built-in short-circuit protection
Ask Price
SP-5503 Open Frame SP-5503 Open Frame SP-5503 IP67 SP-5503 IP67
SP-5503
80W Open-Frame Driver for Industrial Use
Watts
80W
Input
120–300V AC
Output
24–45V DC · 1.75A / 52–66V DC · 1.2A
Ingress
IP65
Dimensions
131 × 43 × 37 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price
SP-2961 Open Frame SP-2961 Open Frame
SP-2961 100W Open Frame
100W Open-Frame Driver for Industrial Use
Input
120-300V AC
Output
24-66V DC · 700mA
Ingress
IP20
Dimensions
129 × 77 × 41 mm
Features
  • 6kV surge protection (IEC 61000-4-5)
  • Sustains 440VAC up to 4 Hrs
  • THD <10% — flicker-free output
Ask Price

Surge Protection Devices (SPDs)

10kV-class SPDs to protect drivers and fixtures from line surges.

SP-1545 SP-1545
SP-1545 10kV
10kV Ultra-MOV Surge Device
Input
120–310V AC
Output
Surge Protection Device
Ingress
IP67
Dimensions
44 × 32 × 23 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-1448 SP-1448
SP-1448 10kV / 20kV
20kV SPD with Status Indicator
Input
120–310V AC
Output
Surge Protection Device
Ingress
IP67
Dimensions
56 × 28 × 39 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
SP-1245 SP-1245
SP-1245 10kV / 10kA
10kV/10kA SPD — HV/LV Cut-off
Input
120–310V AC
Output
SPD with HV/LV cut-off
Ingress
IP67
Dimensions
75 × 39 × 26 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price

Wi-Fi Mini UPS

Keep your router alive during power cuts.

SP-4004A SP-4004A
SP-4004A 12V
12V Wi-Fi UPS — 2.5hr Backup
Input
12V DC
Output
12V DC · 2A
Ingress
IP60
Dimensions
101 × 60 × 33 mm
Features
  • 2.5kV surge protection (IEC 61000-4-5)
  • Sustains 350V AC for 4 hours
  • Built-in short-circuit protection
Ask Price
